DE-DDW-25

Differential Batching Scale

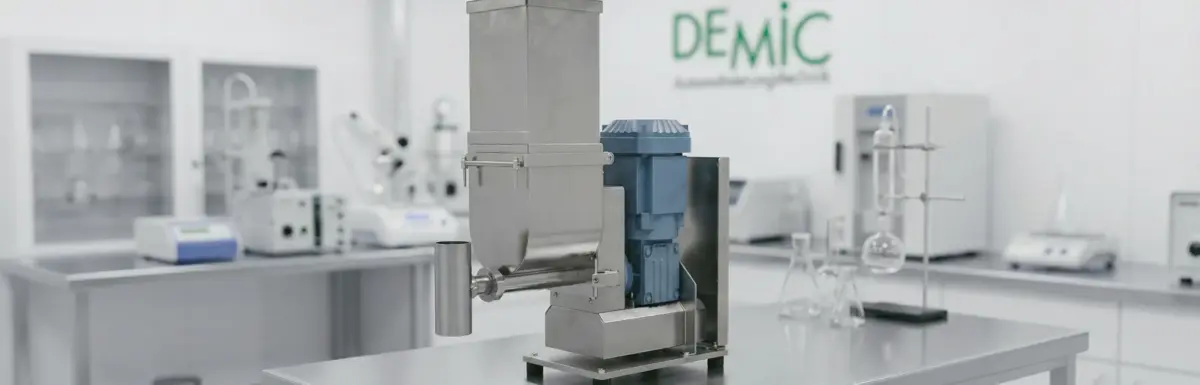

The DE-DDW-25 differential dosing scale is a compact dosing system designed for volumetric and gravimetric dosing, primarily of free-flowing powders in the lower capacity range.

Highlights

High dosing accuracy and reliability are guaranteed even with difficult-to-handle bulk materials
Integrated agitator prevents bridging and ensures uniform screw fill level
Easy cleaning and maintenance thanks to simple disassembly
Space-saving and compact design
Flexible use across various industries and environments
Delivered fully assembled and can be quickly commissioned via the web server or the optionally available HMI

Compact Powder Dispenser

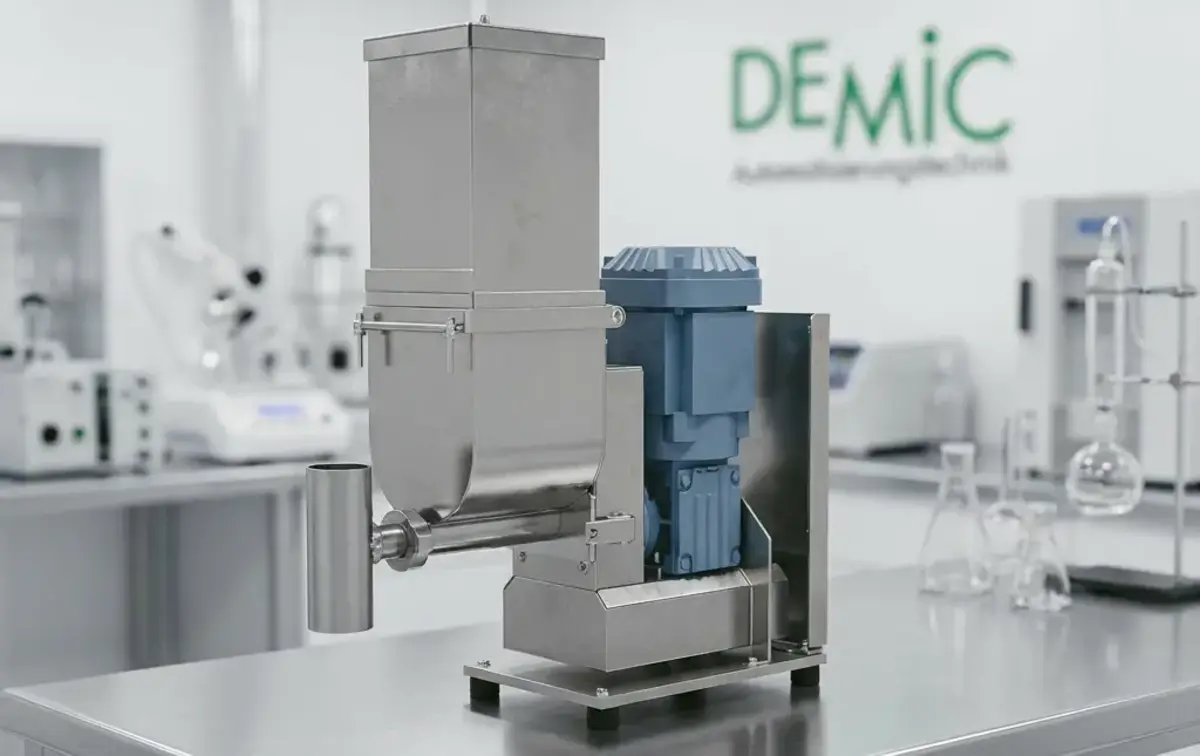

The DE-DDW-25 differential dosing scale is a compact device designed primarily for dosing
free-flowing powders.

Equipment Options

	NC	Advanced	Professional
Mechanics	✔	✔	✔
Engines	1	1	2
Frequency converters	1	1	2
Control		✔	✔
Product Activation		Mechanically Coupled	Independently adjustable

Features

Precise dosing of free-flowing powders in the low-capacity range of 1–150 dm³/h
Wide range of applications in industrial settings, pilot plants, or laboratories
No complex wiring required thanks to the control and weighing electronics housed in a control box mounted directly on the unit
The entire hopper, including the augers, can be replaced in just a few simple steps
Manual or fully automatic filling using various accessories and lid options
User-guided system commissioning, even for inexperienced employees
Various Ethernet protocols enable connection to customer-side PLC systems and form the basis for using the integrated web server

Options

Replacement augers, auger tubes
Vertical outlet
Tank lids for automatic or manual filling
Tank lids with filter bags or jet filters for venting
Flexible inlet compensators and outlet sleeves
5.7" / 7" HMI for use as a stand-alone system

Control System

All devices in the DE-CON/U family
Can be mounted directly on the device or in the control cabinet
Also available in an ATEX version
Direct connection to DMS load cell
Optionally with control of a conveyor system and/or feeding stations
Full operation and program updates via web server
Numerous interfaces to the PLC system
Can be combined with dosing devices from other manufacturers

Control System for Dosing Technology

Our control
systems are extremely flexible and can be adapted
to your dosing technology

Technical Features of Continuous Dosing

Dosing Tools and Dosing Capacities

Screw Type	Worm diameter [mm]	Screw pitch [mm]	Pipe diameter Outer/inner [mm]	Max. dosing capacity [dm³/h]* check
Spiral screw	15	15	24/17	1 - 150
Spiral auger	25	25	30/27	1 - 150

* The specified dosing capacities are theoretical values for volumetric operation at 100% screw fill rate and 100% motor speed. The metering capacity can be significantly affected by changes in the screw and gearbox. With gravimetric metering, the metering capacity is generally slightly lower. The actual capacity is largely determined by the material properties of the bulk material and must be determined on a case-by-case basis.
